Chess Clocks

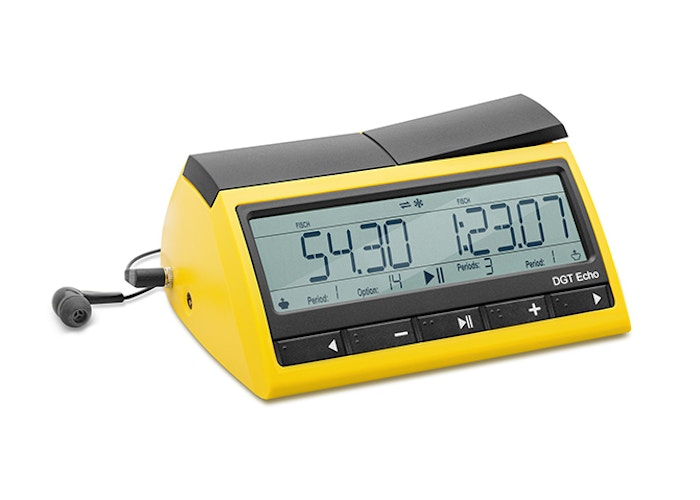

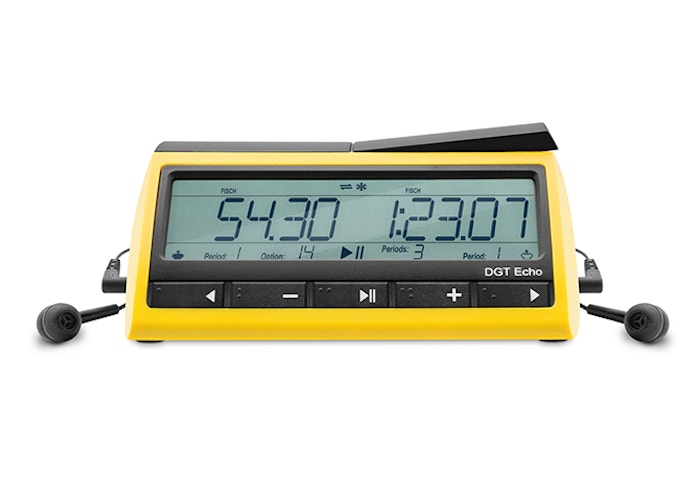

DGT Echo Talking Chess Clock

DGT Echo is a talking chess timer. At the push of a button it informs players of their own remaining time or their opponent's remaining time.

Back to Chess Clocks

Information

Specifications

Timing options

Note: For the visually impaired we have a spoken quick guide.

DGT proudly presents DGT Echo, a talking chess clock for blind and visually impaired players.

With a push of a button it informs players of their own remaining time or their opponent's remaining time.

The DGT3000 is approved by the International Chess Federation FIDE and can connect to electronic DGT e-Boards.

DGT Echo is the audio version of the widely used DGT3000 chess clock and has these extra advantages:

All settings and clock times are spoken in English.
Eye-catching color combination designed to accommodate players who are visually impaired.
Braille buttons and audio Quick Guide for easy operation.
Two earbuds included; clock sound levels can be adjusted for each player.
Visit the clock guide to learn about all the timing options.

Dimensions

Housing size: 6.3"×4.3"×2.0" (160 x 110 x 50 mm)

Clock weight: 5 oz /141 gr

Technical specifications

Battery

Two AA

Accuracy

Within 1 seconds per hour

Housing

ABS Plastic

Sensor technology

High precision with Darkfield Face value: 1000 dpi Dpi : 200 to 4000 dpi (can be increased in 50 dpi increments)

General

Color

Yellow and black

Warranty

2 years

Option	Timing method	Basic time / Extra times(s)
01	Time (1)	5 m
02	Time (1)	10 m
03	Time (1)	25m
04	Time (1)	1 h
05	Time (1)	2 h
06	Time (2)	2 h + 30 m
07	Time (2)	2 h + 1 h
08	Time (3)	2 h + 1 h + 30 m
09	Time (3)	2 h + 1 h + 1 h
10	Fischer (1) *	3 m + 2 s/move bonus
11	Fischer (1) *	25 m + 10 s/move bonus
12	Fischer (1) *	1 h 30 m + 30 s/move bonus
13	Fischer (2) *	1 h 30 m + 30 s/move free
14	Fischer (3) *	1 h 40 m + 50 m + 15 m + 30 s/move free
15	Delay (1) *	25 m + 10 s/move free
16	Delay (1) *	1 h 55 m + 5 s/move free
17	Delay (2) *	2 h + 15 m + 30 s/move free
18	Delay (3) *	2 h + 1 h + 15 m + 30 s/move free
19	Can-Byo (2) *	1 h + 5 m Canadian byo-yomi
20	Byo-Yomi (2)	1 h + 1x20 s/byo-yomi
21	Scrabble™	25 m + up-count
22	US-Delay (1)	5 m + 2 s/move free
23	US-Delay (1)	25 m + 5 s/move free
24	US-Delay (2)	1h 55 m + 60 m + 5s/move free
25	-	Computer/Internet use
26	-	Manual Set 1
27	-	Manual Set 2
28	-	Manual Set 3
29	-	Manual Set 4
30	-	Manual Set 5

Take a look

Choose the most innovative, high-quality DGT Echo Talking Chess Clock that delivers top performance at all levels of chess. At home, at the club and at organized tournaments.
